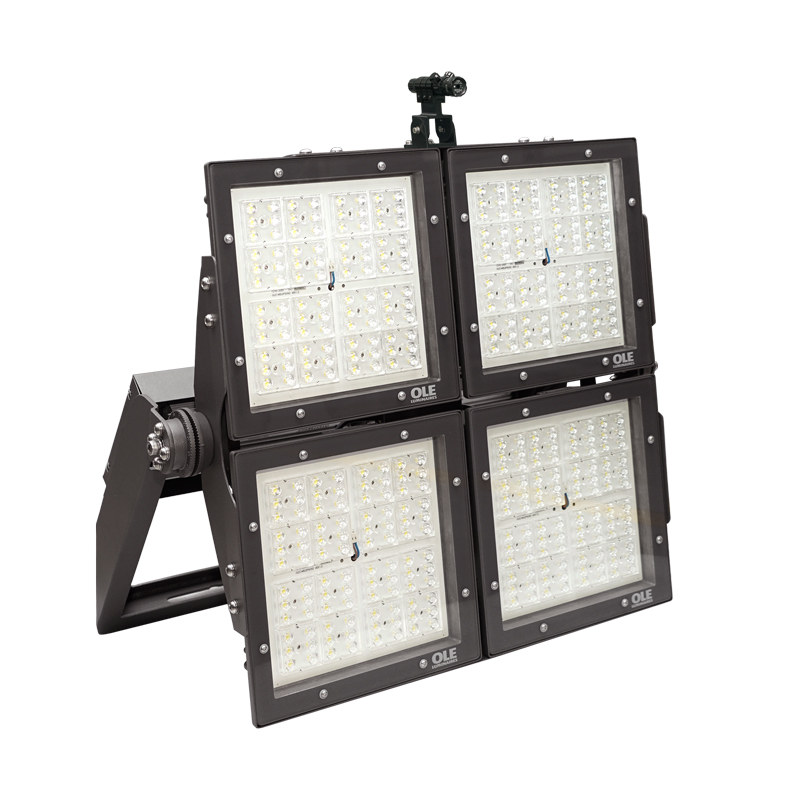

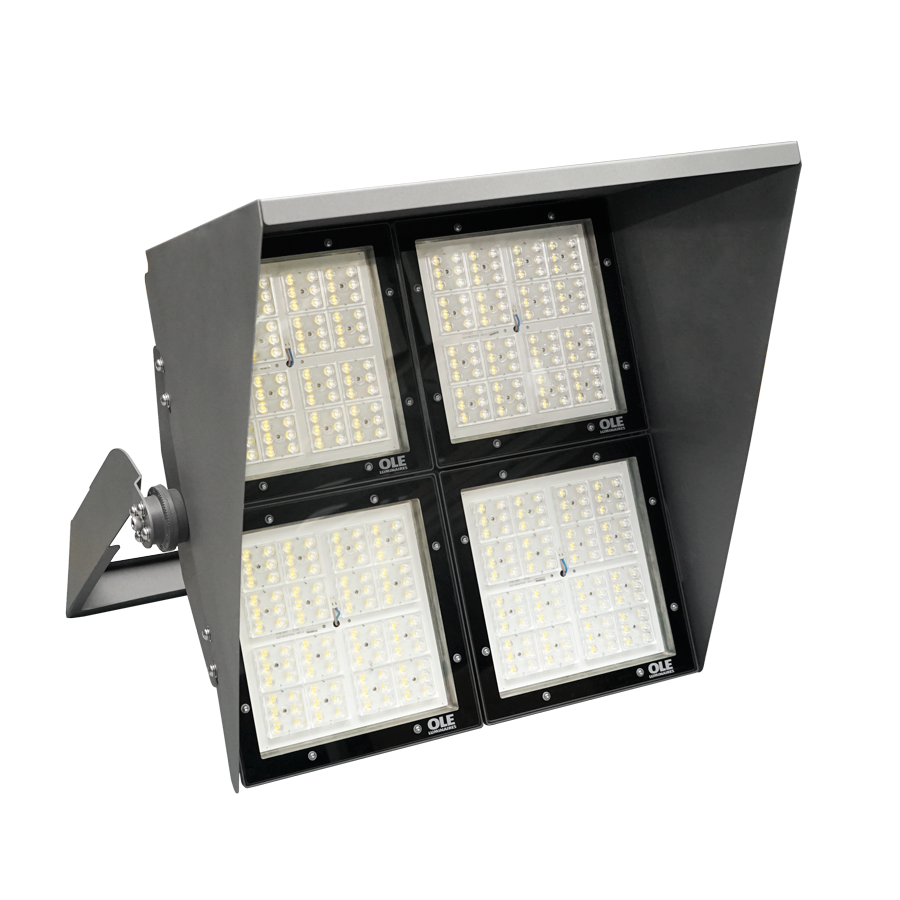

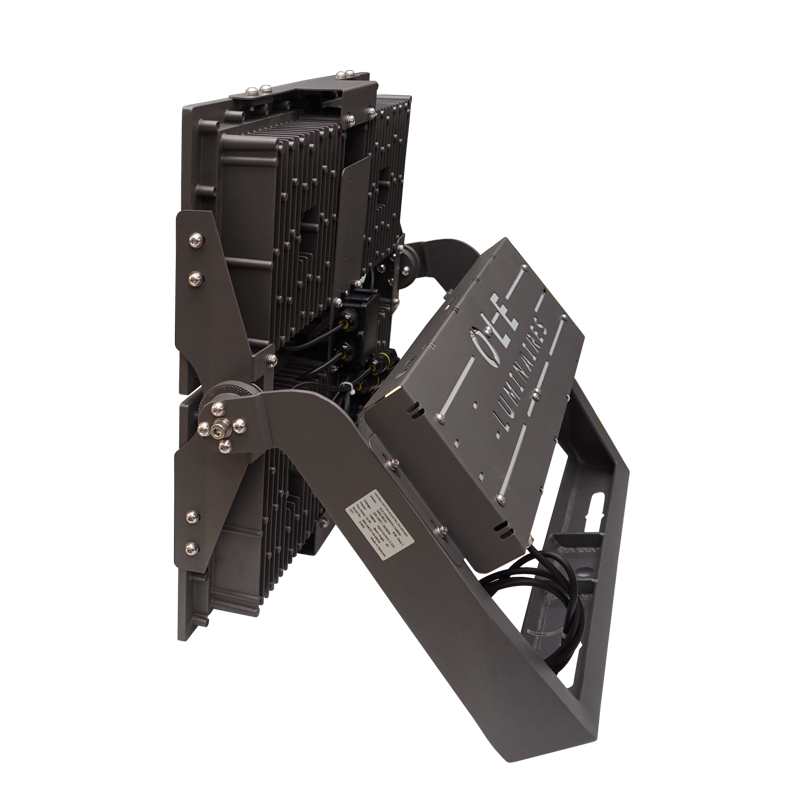

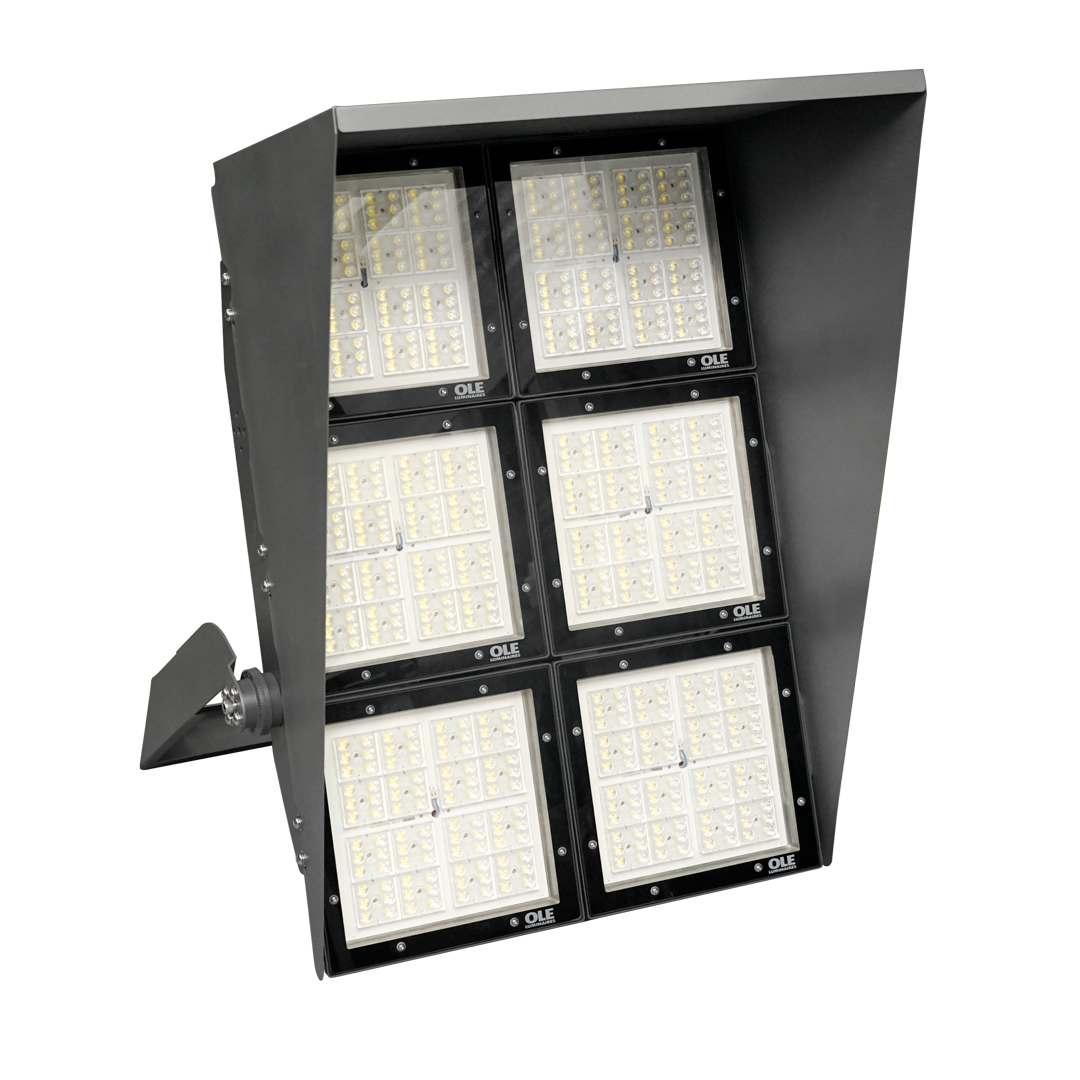

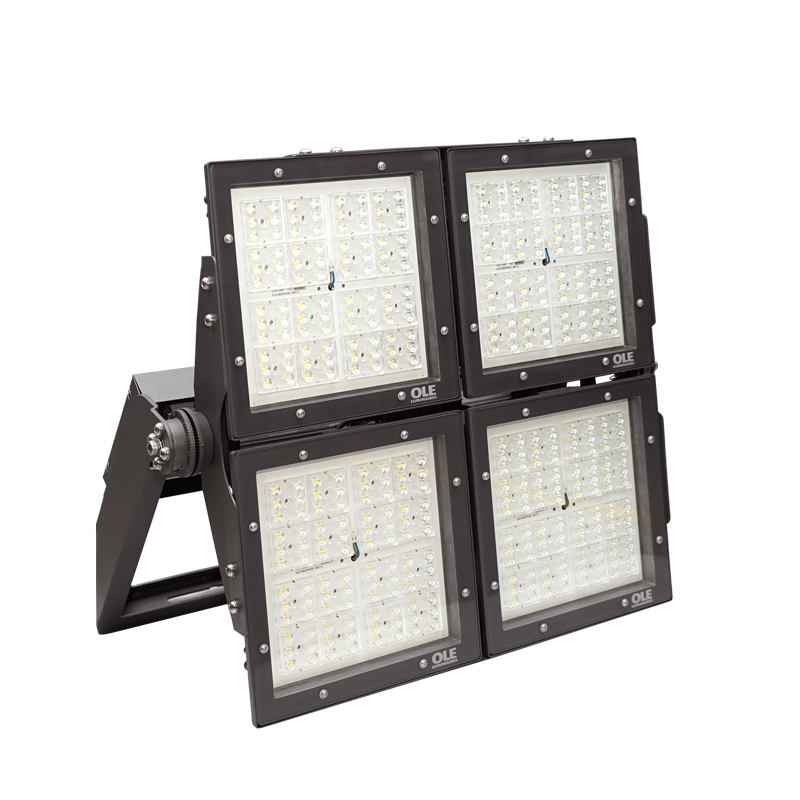

CHAMPION

LED Sports Lighting / Highmast Lighting
We are a trusted LED sport lighting manufacturer in Malaysia, offering the OLE Champion series with wattage options ranging from 400W to 1800W. Our LED stadium lighting is made from pressure-casted aluminum ADC12 casing with a powder-coated finish, and is protected by 5mm tempered glass for added durability. The OLE Champion Floodlight is proudly Made in Malaysia and holds SIRIM Certification and Made in Malaysia Certification, ensuring quality and reliability.
Technical Information
Photometric Data
Dimension
Download
Enquiry
Power : 400W/800W/1200W/1500W/1800W
Ingress Protection : IP66 Optical Compartment
Impact Protection : IK09
Input Voltage : 220V~240V / Universal input
Lumen Maintenance : L90 @ 70,000 hours
Working Temperature : -25°C ~ 50°C
Storage Temperature : -25°C ~ 80°C
Power Factor : >0.95 at Full Load
Color Rendering Index (CRI) : >70
THD : <20%
CCT : 3000K/4000K/5700K/6500K
Casing Material : Pressure Casted Aluminum ADC12, Powder-Coated Finishing
Cover : 5mm Tempered Glass
Bracket : Mild Steel / Stainless Steel (Optional)
Dimming : (Optional) 0-10V / DALI / Timer

Should you need more Information on the product, kindly write your details to us.
