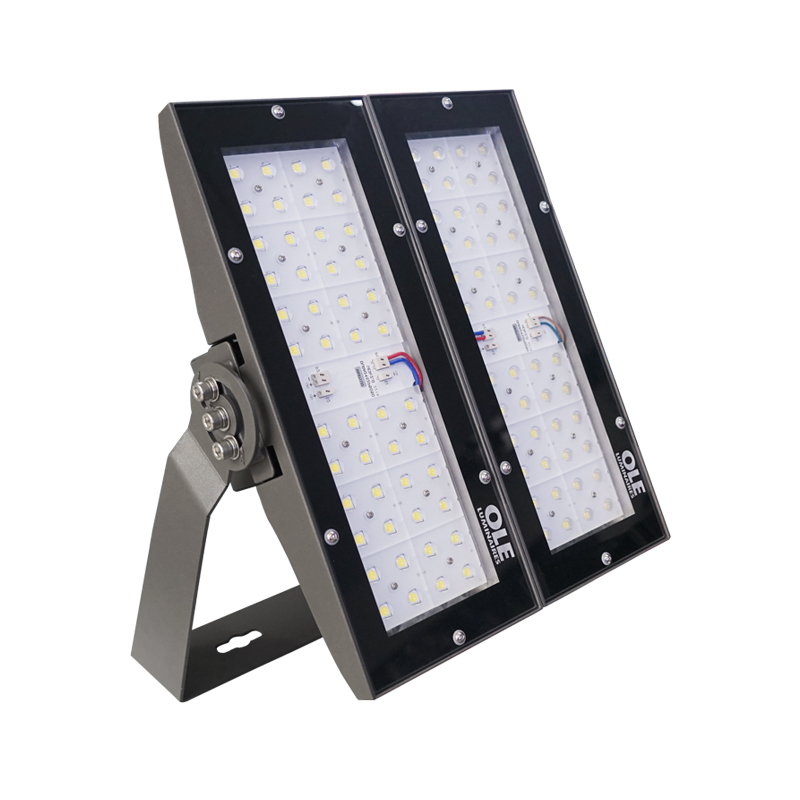

DURA SPL

LED Sports Lighting / Highmast Lighting
Dimension
Download
Enquiry
Technical Information

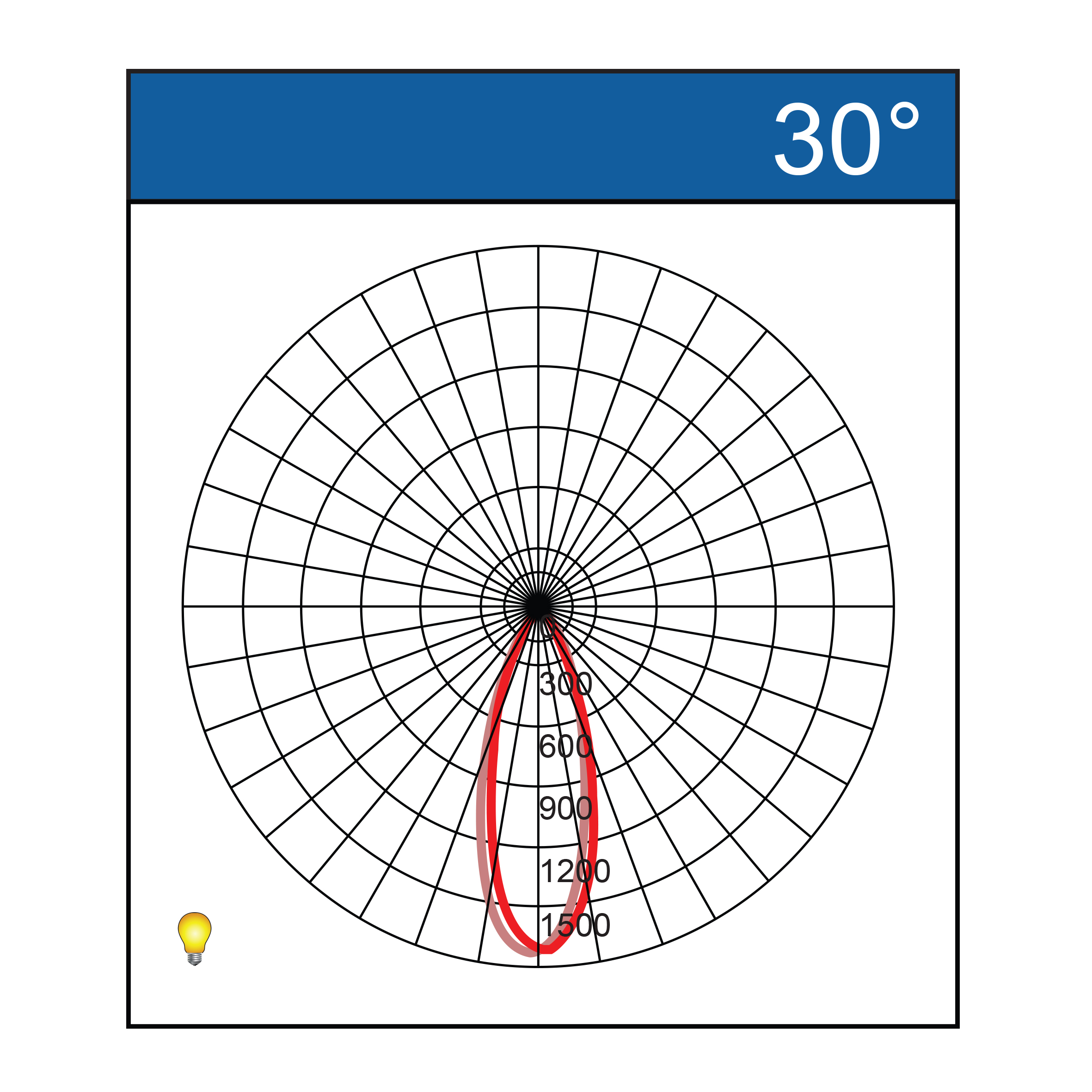

Photometric Data
Dimension
Download
Enquiry
Technical Information
Photometric Data
Dimension
Should you need more Information on the product, kindly write your details to us.
Power : 120W/180W/240W/300W/360W/400W/480W/600W/800W/960W/1000W/1200W
Ingress Protection : IP66 Optical Compartment
Impact Protection : IK09
Input Voltage : 220V~240V / Universal input
Lumen Maintenance : L90 @ 70,000 hours
Working Temperature : -25°C ~ 50°C
Storage Temperature : -25°C ~ 80°C
Power Factor : >0.95 at Full Load
Color Rendering Index (CRI) : >70
THD : <20%
CCT : <3500K/4000K/5000K/6000K
Casing Material : Pressure Casted Aluminum ADC12, Powder-Coated Finishing
Cover : 5mm Tempered Glass
Bracket : Mild Steel / Stainless Steel (Optional)
Dimming : (Optional) 0-10V / DALI / Timer

Should you need more Information on the product, kindly write your details to us.
Power : 120W/180W/240W/300W/360W/400W/480W/600W/800W/960W/1000W/1200W
Ingress Protection : IP66 Optical Compartment
Impact Protection : IK09
Input Voltage : 220V~240V / Universal input
Lumen Maintenance : L90 @ 70,000 hours
Working Temperature : -25°C ~ 50°C
Storage Temperature : -25°C ~ 80°C
Power Factor : >0.95 at Full Load
Color Rendering Index (CRI) : >70
THD : <20%
CCT : <3500K/4000K/5000K/6000K
Casing Material : Pressure Casted Aluminum ADC12, Powder-Coated Finishing
Cover : 5mm Tempered Glass
Bracket : Mild Steel / Stainless Steel (Optional)
Dimming : (Optional) 0-10V / DALI / Timer
