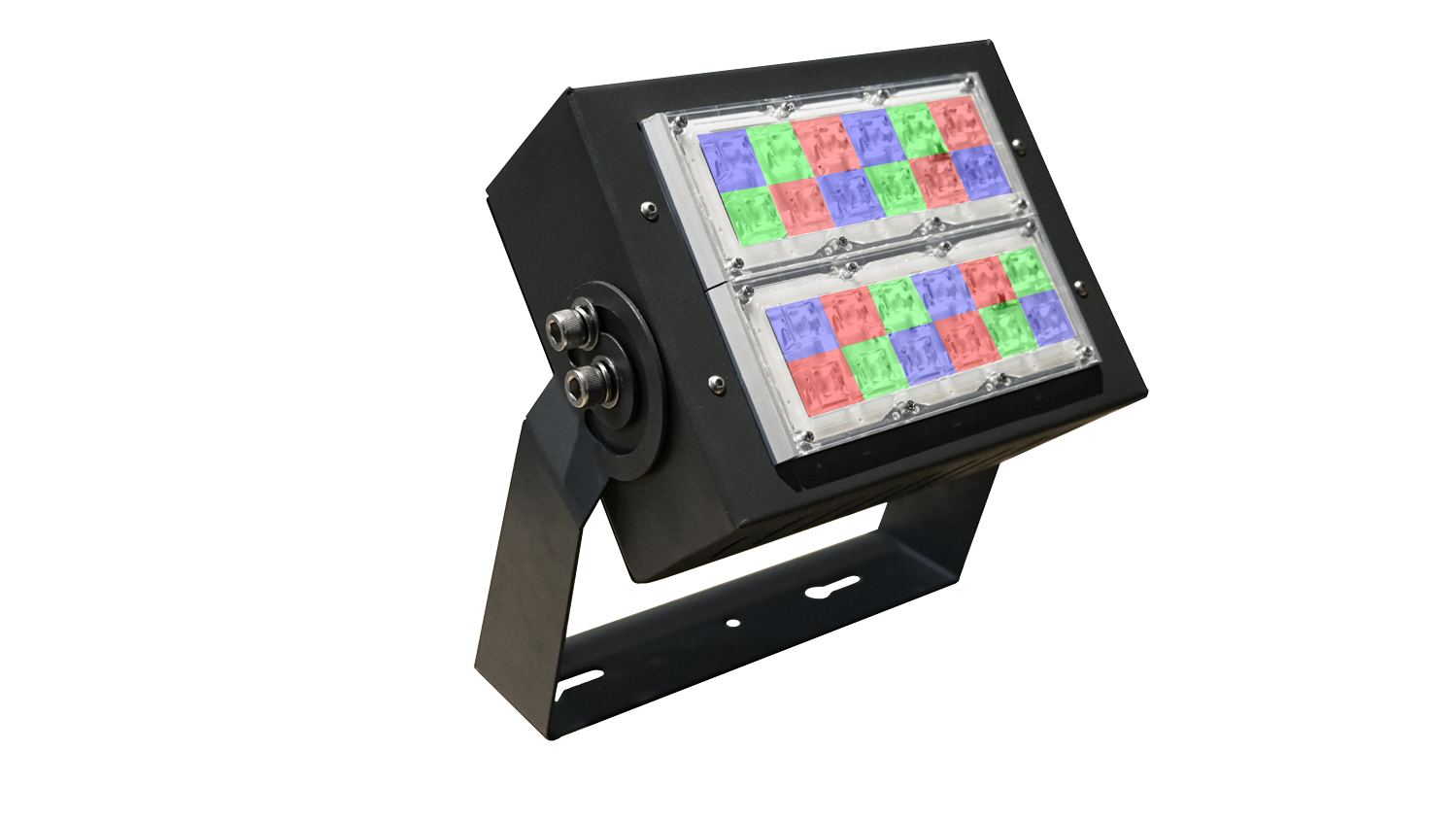

EVO ColorPRO

LED Facade Lighting
Dimension
Download
Enquiry
Technical Information

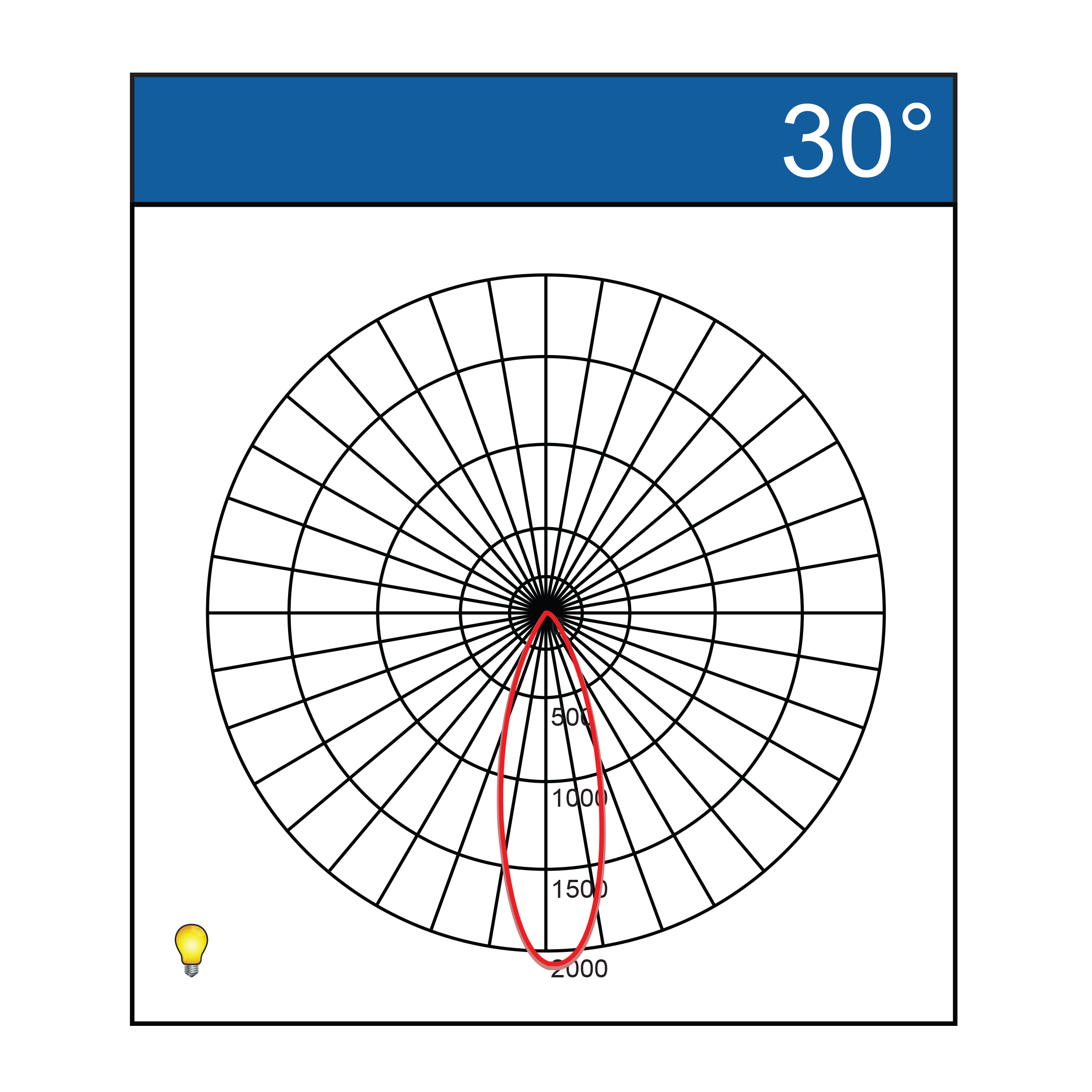

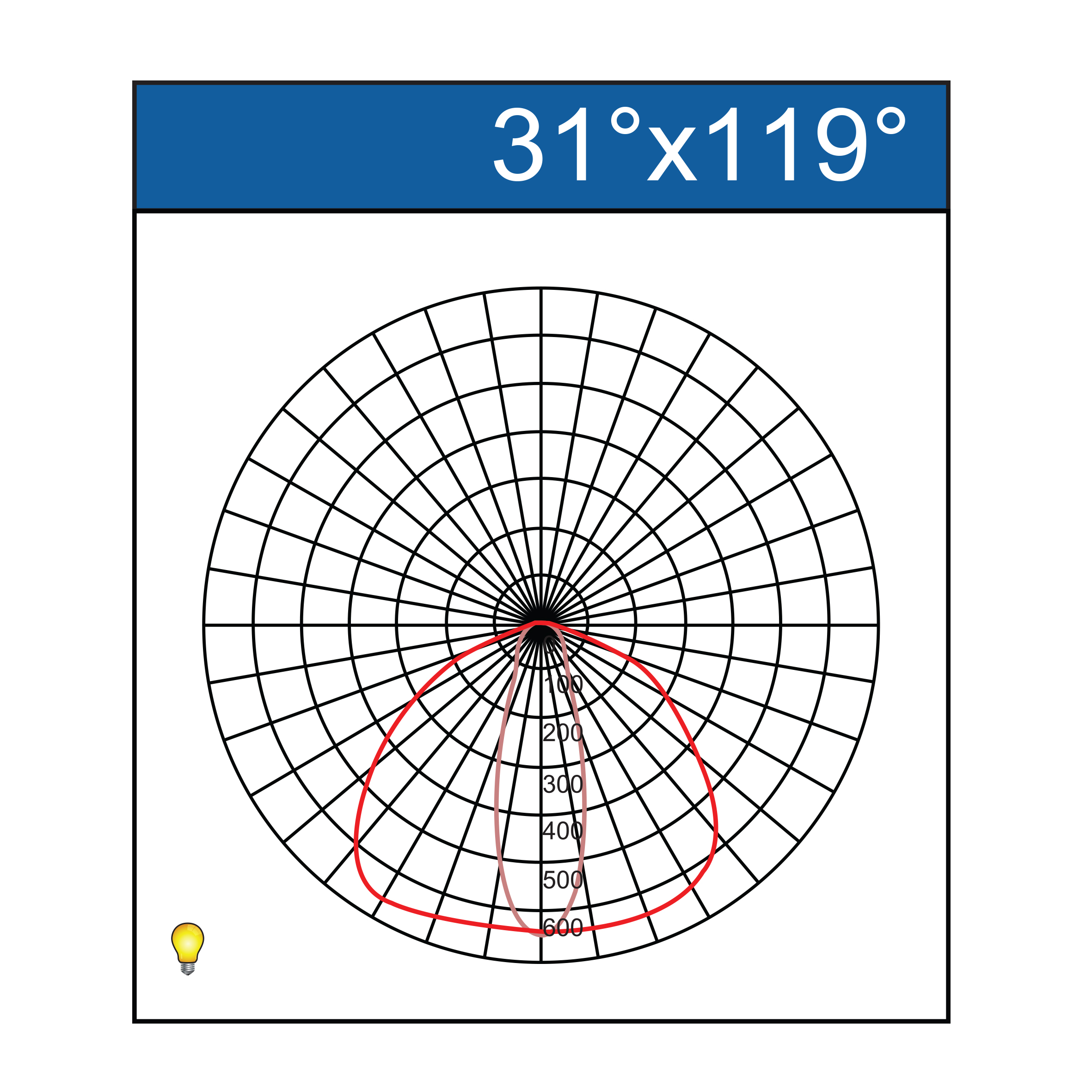

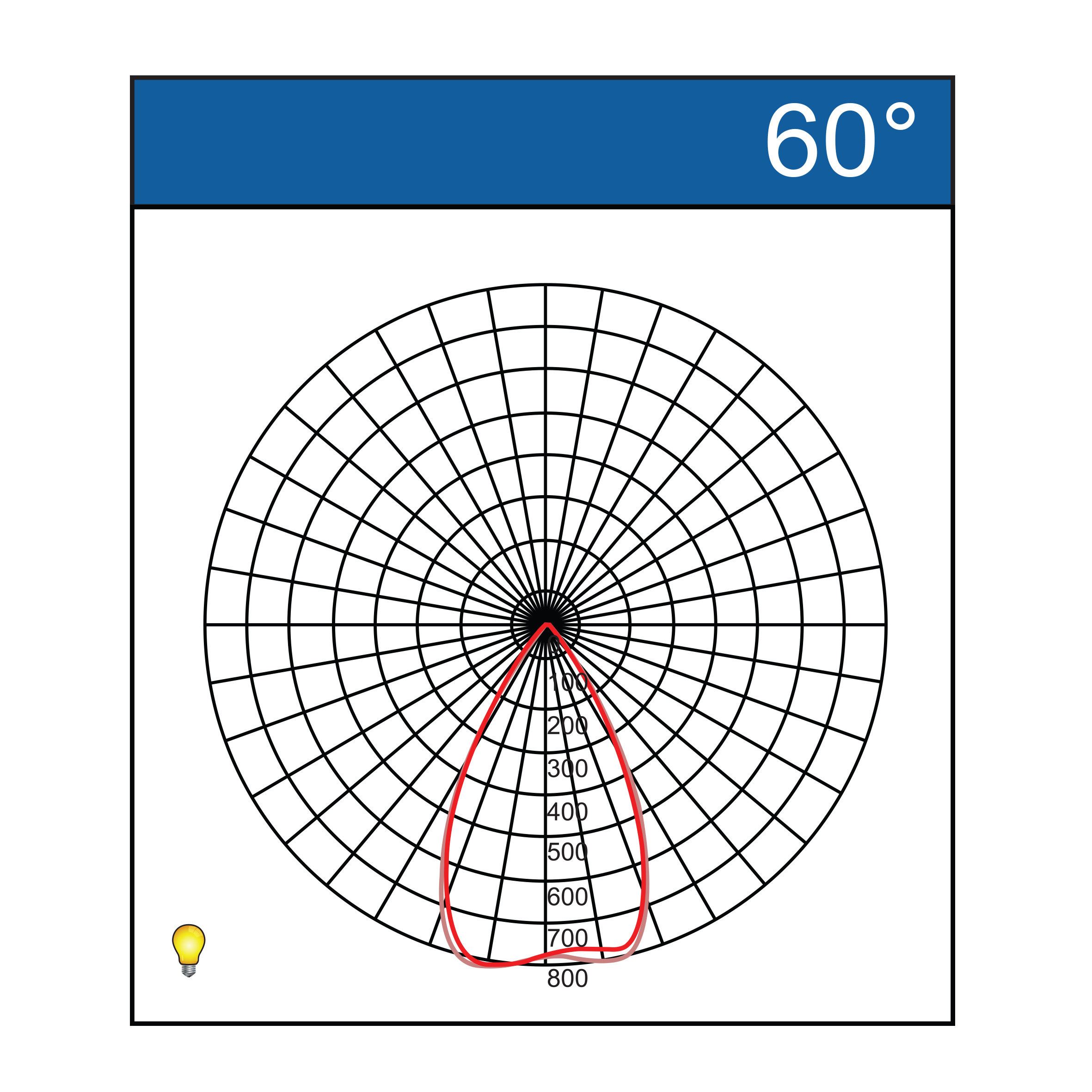

Photometric Data

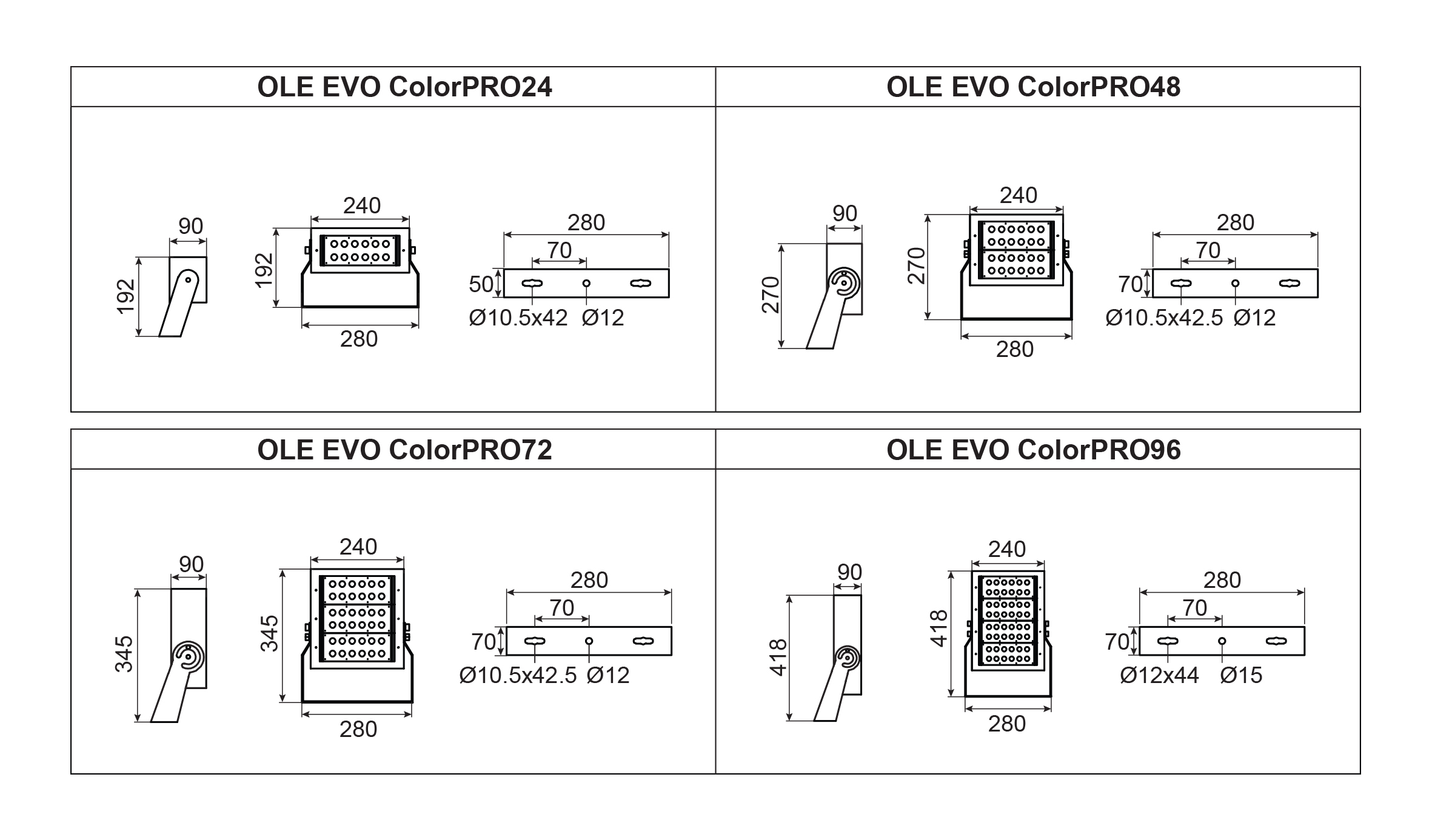

Dimension
Download
Enquiry
Technical Information
Photometric Data
Dimension
Should you need more Information on the product, kindly write your details to us.
Power : 24W/48W/72W/96W
Ingress Protection : IP66 Optical Compartment
Input Voltage : 220V~240V / Universal Input
Lumen Maintenance : L90 @ 60,000 hours
Working Temperature : -25°C ~ 50°C
Storage Temperature : -25°C ~ 65°C
Power Factor : >0.95 at Full Load
Color Rendering Index (CRI) : >70
THD : >20%
CCT : <3500K/4000K/5000K/6000K
Casing Material : Galvanized Steel with Outdoor Powder-Coated Finishing
Cover : Extrusion Aluminium Heatsink
Cover : Mild Steel / Stainless Steel (Optional)
Dimming : (Optional) 1-10V/DALI/TIMER
Should you need more Information on the product, kindly write your details to us.
Power : 24W/48W/72W/96W
Ingress Protection : IP66 Optical Compartment
Input Voltage : 220V~240V / Universal Input
Lumen Maintenance : L90 @ 60,000 hours
Working Temperature : -25°C ~ 50°C
Storage Temperature : -25°C ~ 65°C
Power Factor : >0.95 at Full Load
Color Rendering Index (CRI) : >70
THD : >20%
CCT : <3500K/4000K/5000K/6000K
Casing Material : Galvanized Steel with Outdoor Powder-Coated Finishing
Cover : Extrusion Aluminium Heatsink
Cover : Mild Steel / Stainless Steel (Optional)
Dimming : (Optional) 1-10V/DALI/TIMER
