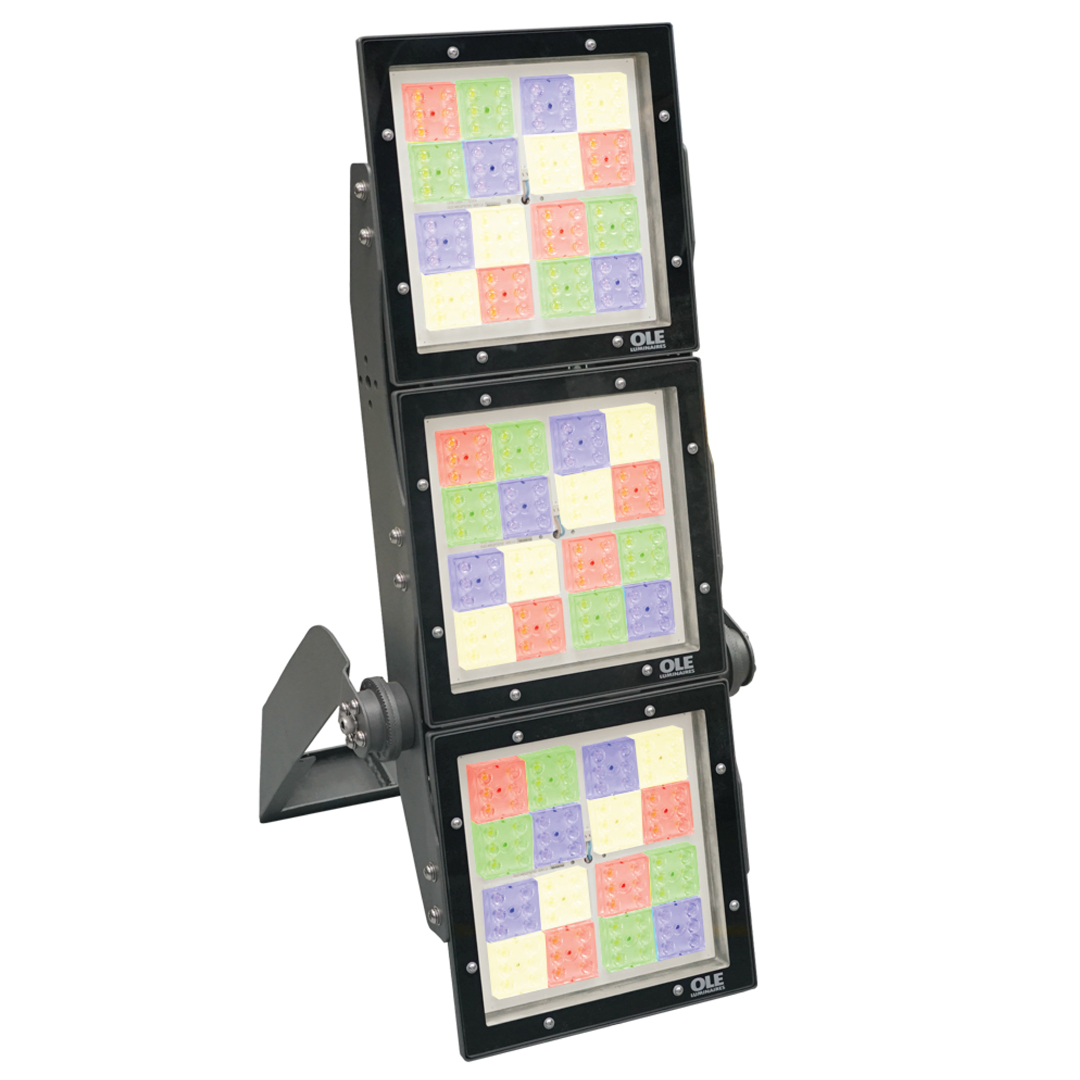

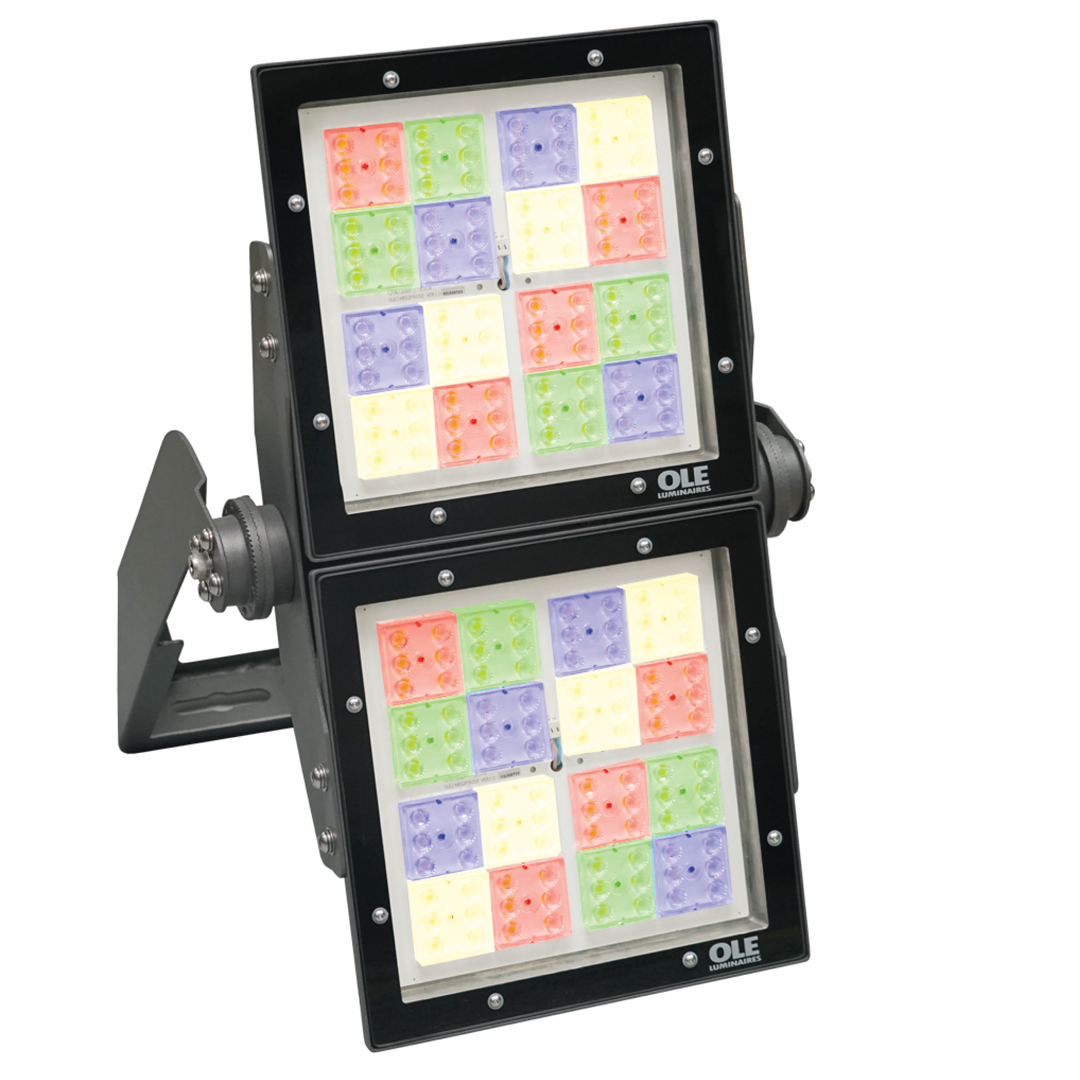

CHAMPION RGBW

LED Facade Lighting
Technical Information

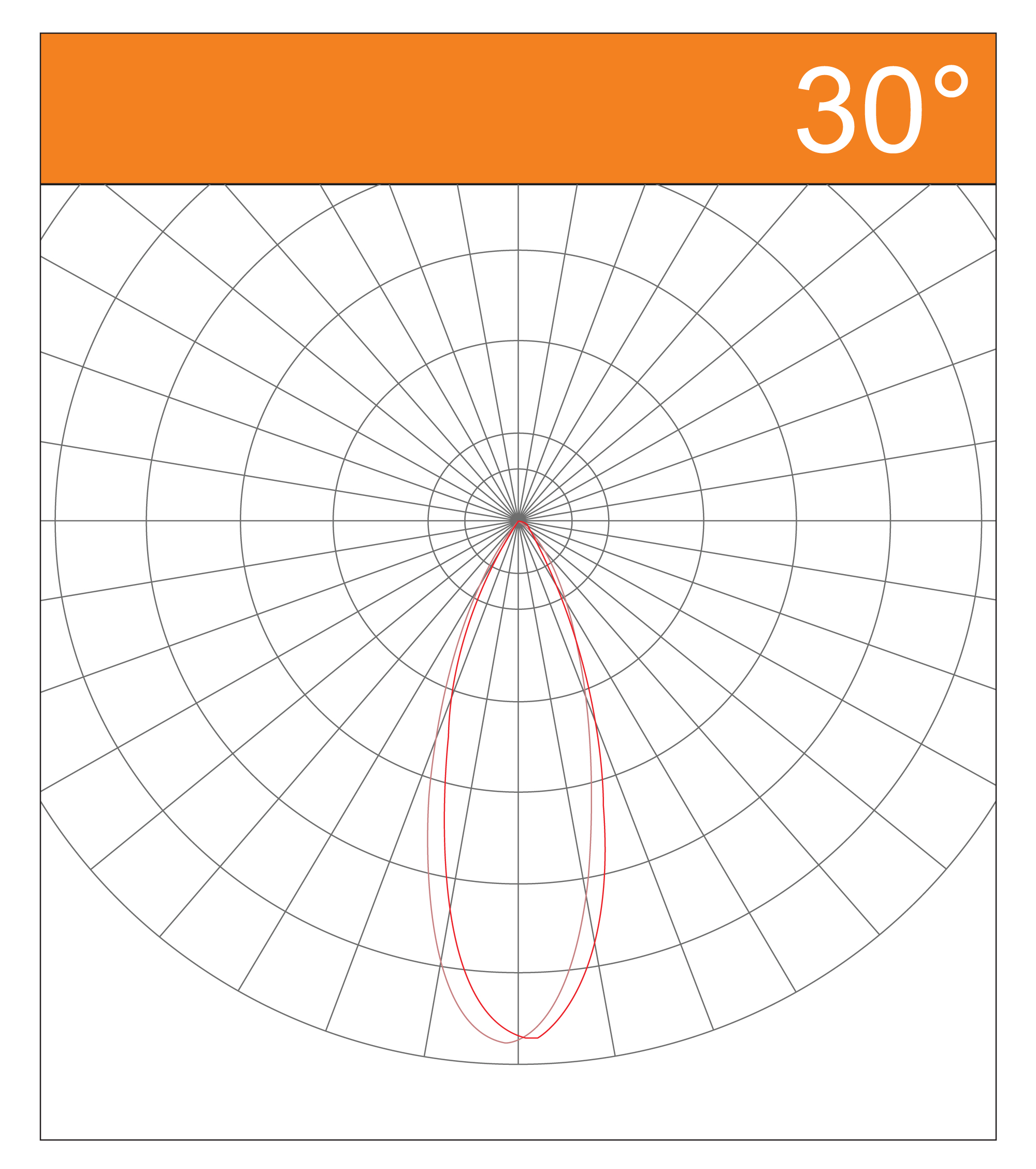

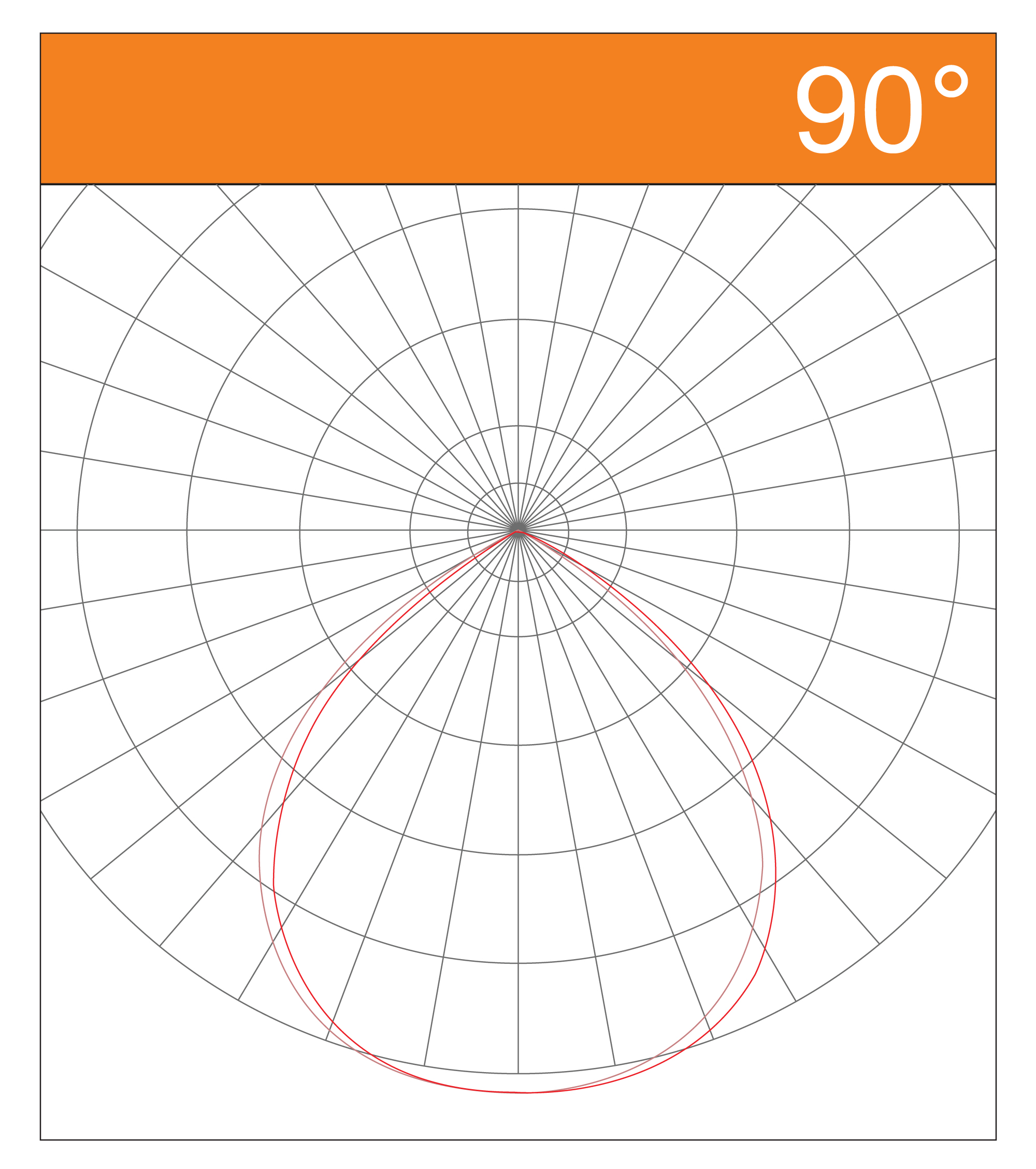

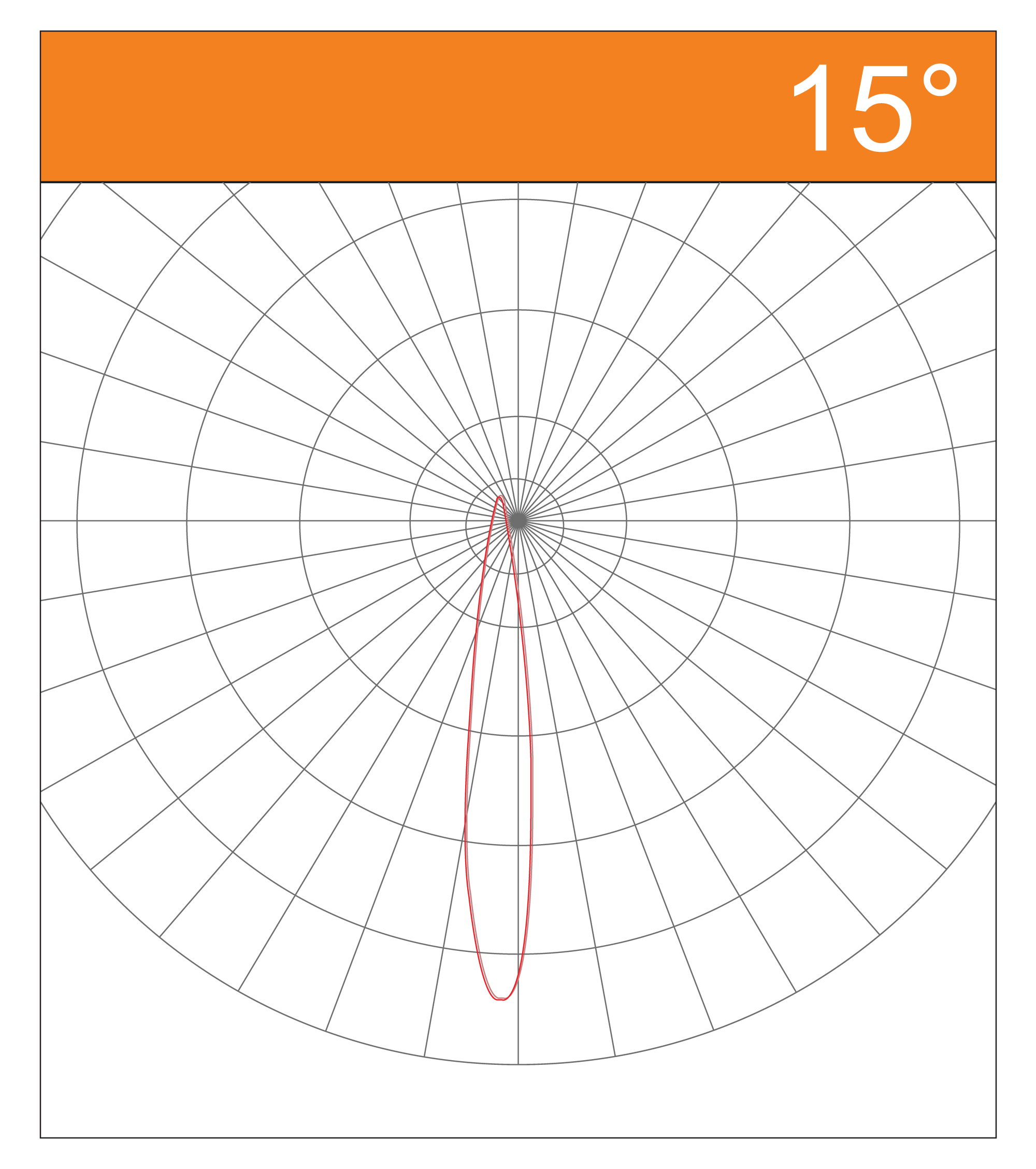

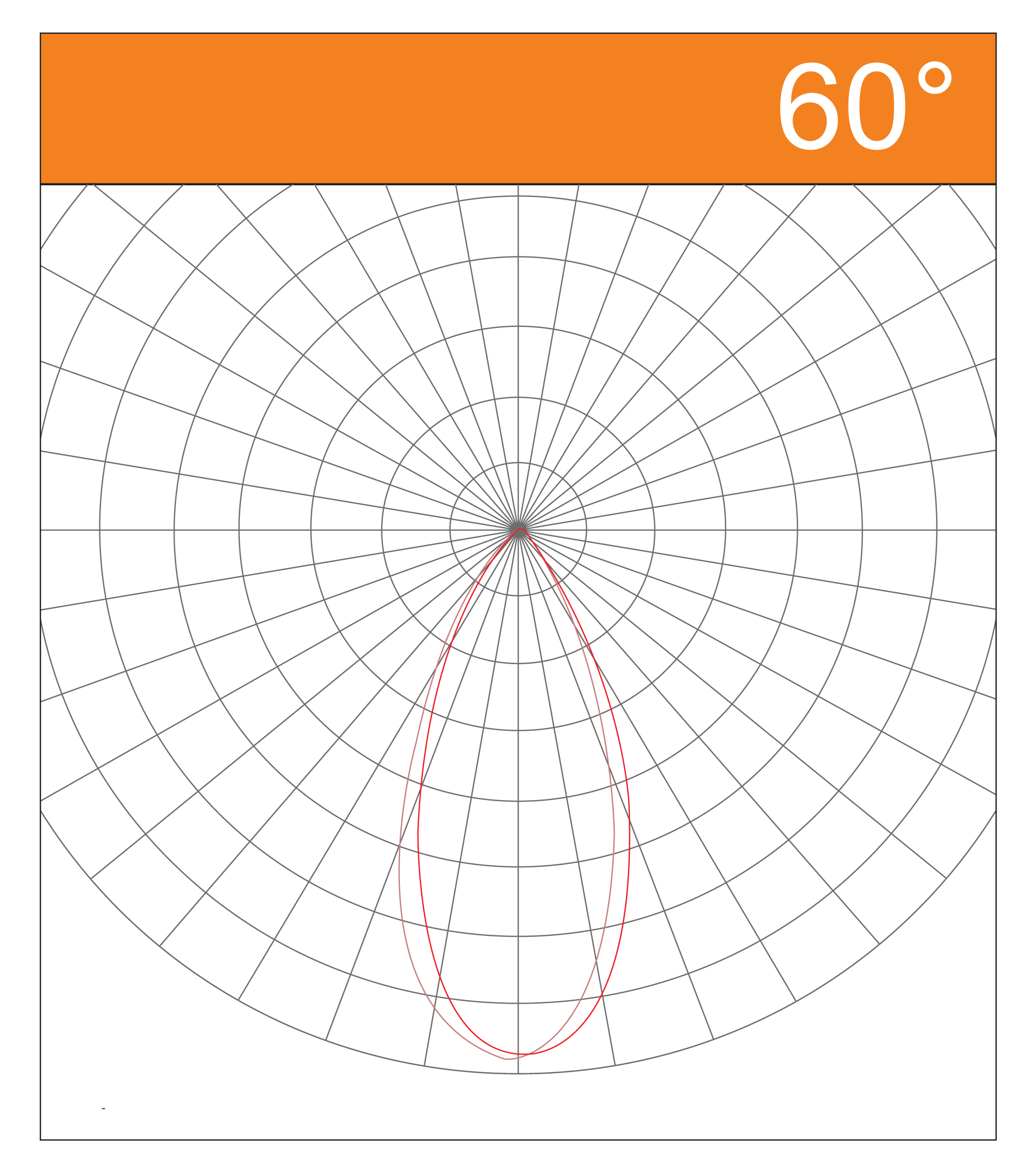

Photometric Data

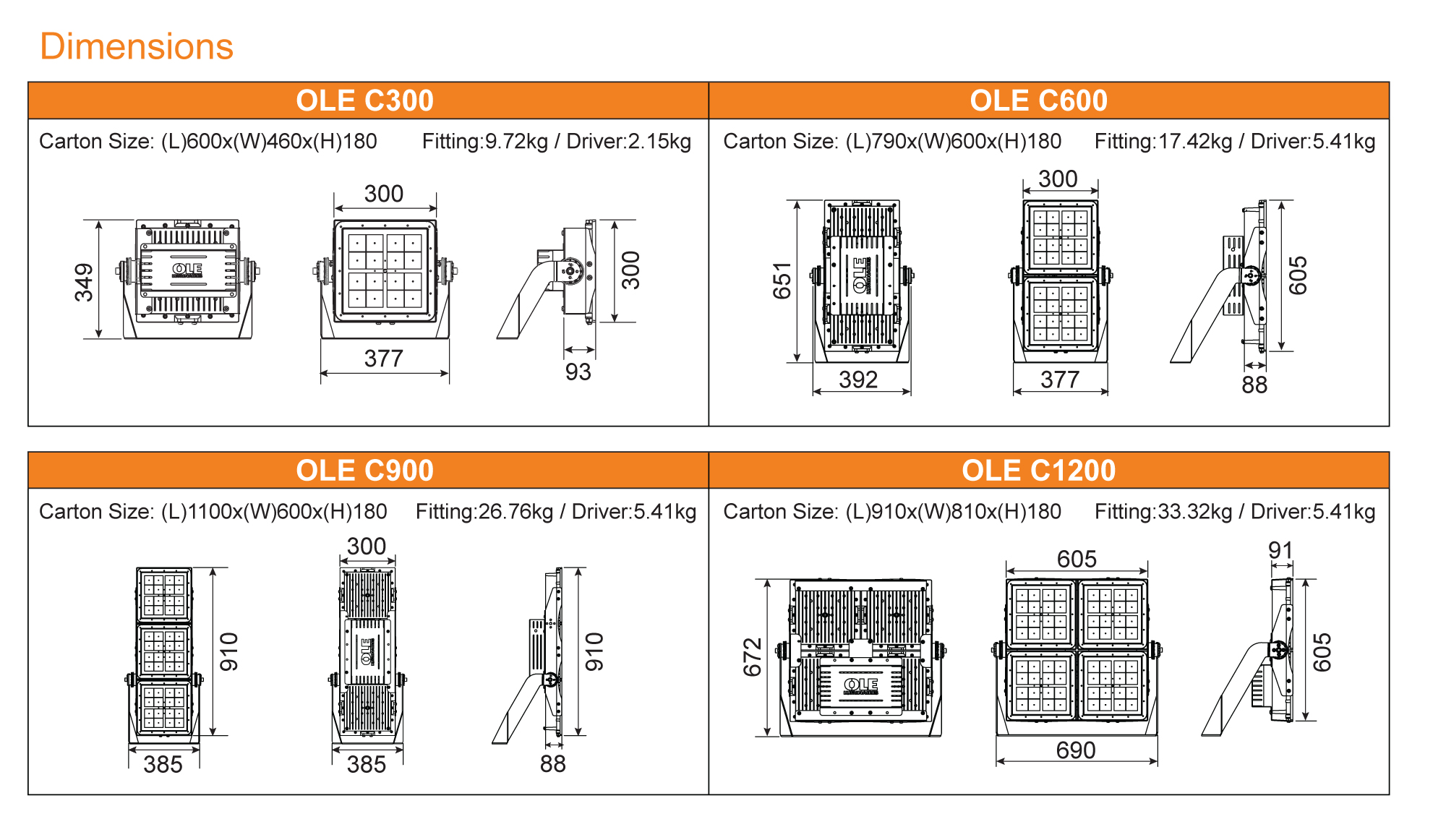

Dimension
Download
Enquiry
Power : 200W/400W/600W/800W
Ingress Protection : IP66 Optical Compartment
Input Voltage : 220V~240V / Universal Input
Lumen Maintenance : L90 @ 70,000 hours
Working Temperature : -25°C ~ 50°C
Storage Temperature : -25°C ~ 80°C
Power Factor : >0.95 at Full Load
Color Rendering Index (CRI) : >70 (Optional >80, >90)
THD : <20% at Full Load
Color : RGBW
Casing Material : Pressure Casted Aluminium ADC12, Powder-Coated Finishing
Cover : 5mm Tempered Glass
Bracket : Mild Steel / Stainless Steel (Optional)
Dimming : (Optional) 1-10V/DALI/TIMER

Should you need more Information on the product, kindly write your details to us.
